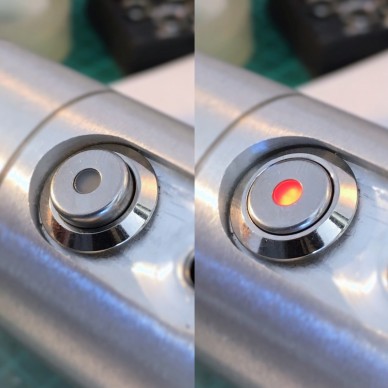

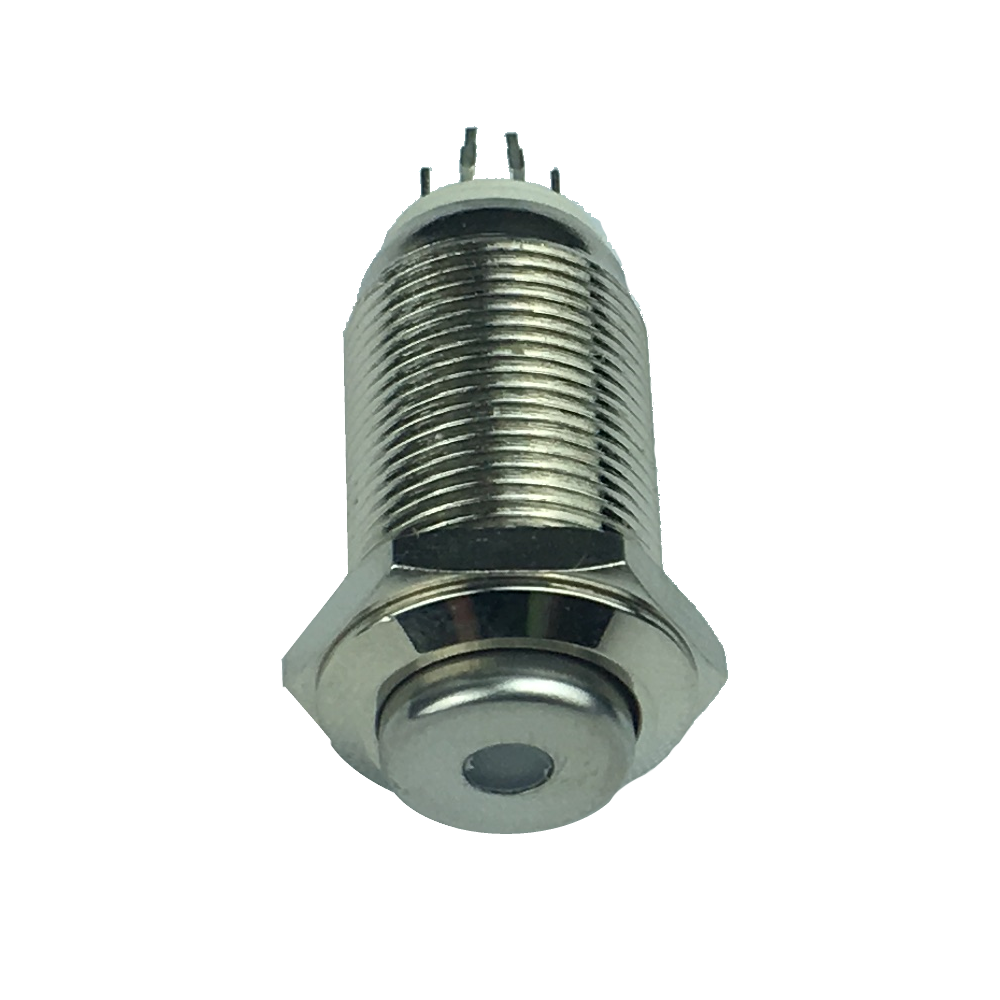

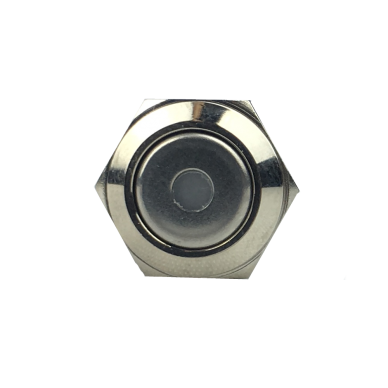

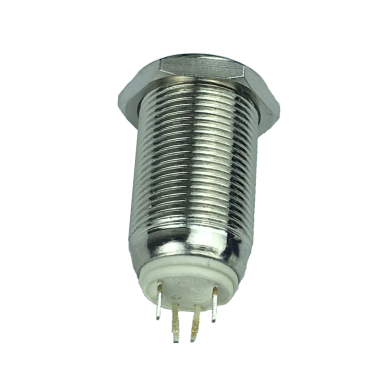

Vandal-proof metal on-off switch with LED SPY. 12mm.
Switch with LED indicator light, metal on/off button, vandal-proof.
Light color: RED, GREEN and BLUE.
€11.99
Tax excluded
Switch with LED indicator light, metal on/off button, vandal-proof.
Light color: RED, GREEN and BLUE.
Switch with LED SPY.
Push-button operation, made of silver-plated metal.
Light color: RED, GREEN and BLUE.
Vandal-proof switch.
Recommended hole diameter: 12mm.
Led spy power supply voltage: 3V
Non-momentary switch: first press close circuit, second press open circuit.
UPDATE 2019: New buttons with led indicator light will have the part to press flush with the ferrule (not protruding) and with pressing will retract deep like the basic metallic buttons.
4 terminals.
RESISTANCE FOR 6-volt ADAPTATION IS ALSO PROVIDED.
INT-LMR
Data sheet
- Material
- Metal
- Outer Diameter (mm)
- 14 mm
- Height
- 26 mm
- Color
- Silver-plated
- Anti-vandalism
- Yes
- Led indicator light
- Yes
- Terminals
- 4
- Inner Diameter
- 12 mm
- Length Terminals
- 2.7 mm
- Use
- On/off switch
Tutto ok
Questo interruttore è sicuramente durevole oltre che solido e molto bello da vedere quando acceso, pero' bisogna stare attenti alla saldatura delle linguette, poichè se è vero che le due principali son molto robuste, gli altri due pin sono un po' leggerini e possono spezzarsi. Ottimo prodotto cmq.
