Lightsaber command sound card sound management and multicolor.

Sound Card for Laser Sword: Make Your Ultimate Sword!

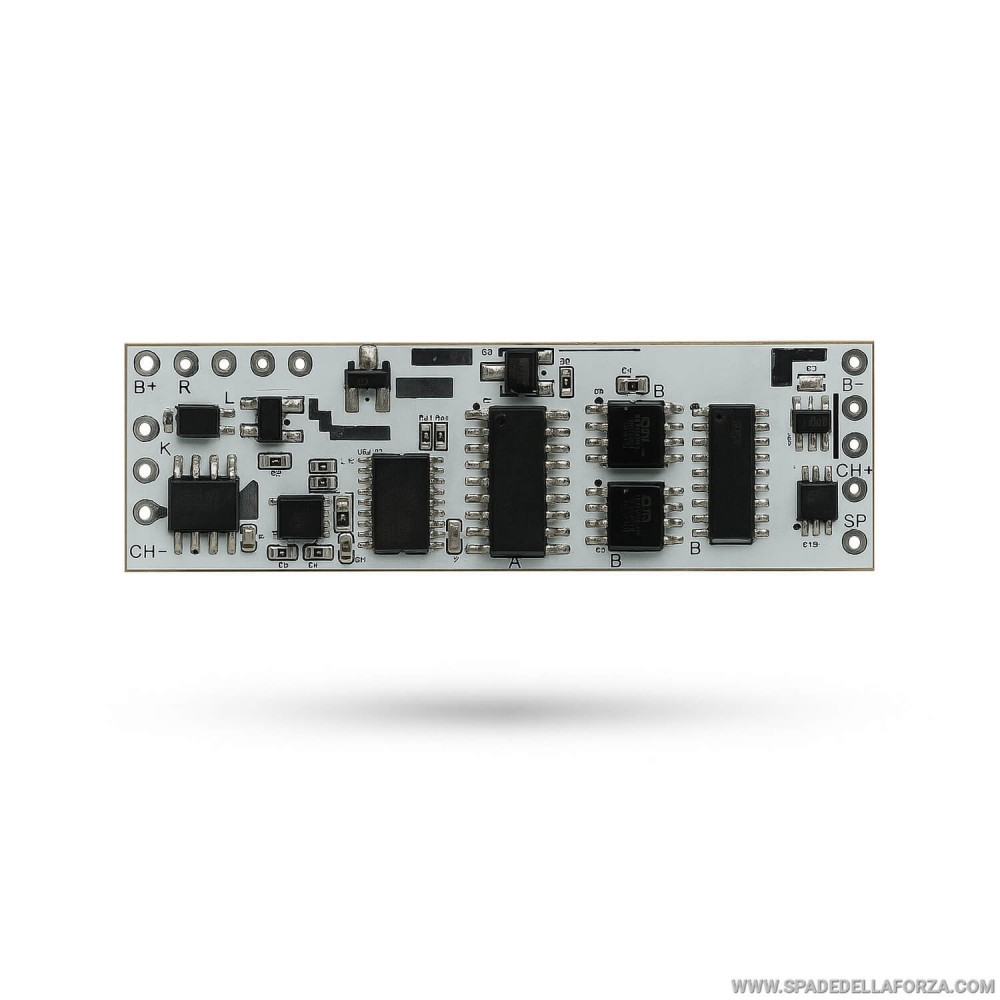

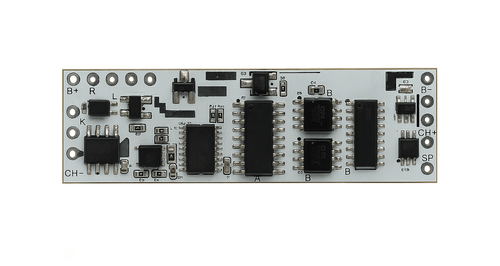

This sound card is the heart of your lightsaber, offering comprehensive functionality for sounds, lights and effects. It is a small Non-programmable PCB, designed to manage every aspect of your sword with ease.

Main Features:

• Customizable Colors: 12 interchangeable RGB colors for your blade.

• Audio Immersive: 3 volume levels, on/off and motion sounds.

• Special Effects: Flash on impact, blaster deflection, blade clash.

• Intuitive Control: Change settings and color via alsomotion control or with the button.

• Advanced Lighting: 3 blade lighting effects (steady lam, pulsing or flashing) and fading on/off.

• Thematic Sound Benches: 16 complete banks with character- and soundtrack-specific effects.

Technical Details and Installation:

The board supports a maximum power supply of 5 Volts - 2A - 10W, compatible with 3.7-volt 18650 lithium batteries (not included). You can recharge via uSB-C standard (door not included).

Important: The Card is not programmable. Default settings, behavior and sounds cannot be changed externally.

To complete your lightsaber, in addition to the card, you will need:

• Lithium Battery

• LED RGB

• Speaker

• Momentary button

• External led or included in the button

• USB-C charging port or equivalent jack.

Installation is recommended for users with experience in tin soldering and electronics. The board is supplied without accessories, tested before shipment. Warranty does not cover damage caused by short circuits or improper assembly/welding practices.

Support and Information:

With the card you will receive one connection diagram. Our operators are at your disposal for any questions or information. We do not handle assembly or welding, but we strongly recommend installation by someone who already has experience in these operations.

The shape, color, and appearance of the board may vary from the illustrative image.
